特点及参数 Features and parameters

•运转速度：60/min/(max)

•Operation speed:60/min(max)

•灌装容量：5-180ml

•Filling volume:5-180ml

•灌装精度：≤±1%

•Filling precision:≤±1%

•适合软管长度：50-180mm

•Suitable tube length:50-180mm

•适合软管直径：ø13-35mm

•Suitable tube diameter ：ø13-35mm

•喂管系统：斜挂式自动整列喂管仓

•Standard configuration: obliquely hanging type automatic lining-up tube feeding storehouse

•选配：鞍形折叠封尾装置，并可通过调节实现折叠三边及马鞍折

•Standard configuration: saddle folding and sealing device, which can realize three-side and four-side folding through adjustment

•选配：夹层料桶保温装置

•Optional:jacket and barrel heat preservation device

•选配：料桶内部搅拌装置

•Optional:blending device inside the barrel

•选配：自动控制上料装置（泵）

•Optional:automatically controlled material feeding device(pump)

•选配：成品管输出传送装置

•Optional:finished tube conveyor

适用于：金属管

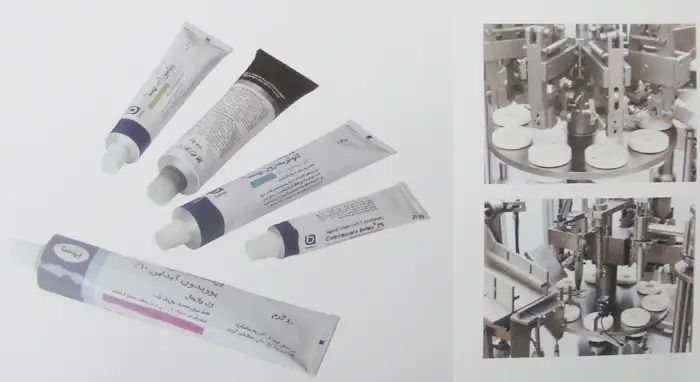

Applicable to :metal tubes
